DZ/T-F

Pressure or Vacuum Relief Valve, In-Line

Features

Spring-Loaded
for High Set Pressures
10% Technology
for Minimum Pressure Increase up to Full Lift
Extreme Tightness
Resulting in Lowest Possible Product Losses and Reduced Environmental Pollution
Optimum Pressure Maintenance
Based on 10% Technology, Set Pressure Is Close to Opening Pressure for Optimum Pressure Maintenance in the System as Compared to Conventional 40% or 100% Technology
High Flow Capacity
Reduces Costs Through the Use of Smaller Valves
For Over- and Underpressure
can Be Used as Pressure or Vacuum Relief Valve
Used in Explosion Hazardous Areas
can Be Used in Explosion Hazardous Areas
Sturdy Housing Design
(PN 10 and PN 16)
Function and Description

Pressure or Vacuum Relief Valve for High System Pressures

The PROTEGO® In-Line Valve DZ/T-F is a state-of-the-art Pressure or Vacuum Relief Valve for higher system pressures. Typically, the valve is installed in the in-breathing or outbreathing lines of tanks, vessels, and process equipment to protect against unallowable overpressure or underpressure. The valve prevents emission losses almost up to the set pressure and prevents unacceptable product. This springloaded model allows higher set pressures than the DZ/T.

Full Lift Technology

The device will start to open as soon as the set pressure is reached and only requires 10% overpressure to full lift. Continuous investments in and a commitment to research and development have allowed PROTEGO® to develop a low pressure valve which has the same opening characteristic as a high pressure safety relief valve. This “Full Lift Type” technology allows the valve to be set at just 10% below the maximum allowable working pressure or vacuum (MAWP or MAWV) of the tank and still safely vent the required mass flow. The opening characteristic is the same for pressure and vacuum relief.

Advanced Manufacturing Technology

Due to our highly developed manufacturing technology, the tank pressure is maintained up to set pressure with a tightness that is far above the conventional standard. This feature is ensured by valve seats made of high quality stainless steel and with individually lapped valve pallets (1) and sturdy housing design. After the overpressure is released or the vacuum is balanced, the valve re-seats and provides a tight seal. The optimized fluid dynamic design of the valve body and valve pallet is a result of many years of research, resulting in stable operation of the valve pallet, optimized performance, and reduced product losses.
Product Data

Dimensions

To select the nominal size (DN), please use the flow capacity charts on the following pages

DN25 / 1" 32 / 1¼“ 40 / 1½“ 50 / 2" 80 / 3" 100 / 4" 125 / 5" 150 / 6" 200 / 8" 250 / 10"300 / 12"
a 220 / 8.66 220 / 8.66 250 / 9.84 250 / 9.84 340 / 13.39 380 / 14.96 460 / 18.11 460 / 18.11 550 / 21.65 650 / 25.59 700 / 27.56
b 150 / 5.91 150 / 5.91 170 / 6.69 170 / 6.69 235/ 9.25 280 / 11.02 335 / 13.19 335 / 13.19 420 / 16.54 505 / 19.88 565 / 22.24
c 395 / 15.55 395 / 15.55 420 / 16.54 420 / 16.54 570 / 22.44 680 / 26.77 940 / 37.01 940 / 37.01 1160 / 45.67 1215 / 47.83 1255 / 49.41

Dimensions in mm / inches

Dimensions for pressure or vacuum relief valve with heating jacket upon request

Material selection for housing

Design AB
HousingSteelStainless Steel
Heating jacket (DZ / T-F-H-...)SteelStainless Steel
Valve seatStainless SteelStainless Steel
GasketPTFEPTFE
Valve palletAA

Option: Housing with ECTFE-lining

Special materials upon request

Material selection for valve pallet

Design A
Pressure range [mbar]
[inch W.C.]

±60 up to ±500

±24 up to ±200

Valve palletStainless Steel
SealingMetal to Metal
SpringStainless Steel

Special materials upon request.

Devices with higher set pressure or vacuum are available upon request, for lower set pressure or vacuum refer to type DZ/T

Flange connection type

EN 1092-1; Form B1
ASME B16.5 CL 150 R.F.

other connections upon request

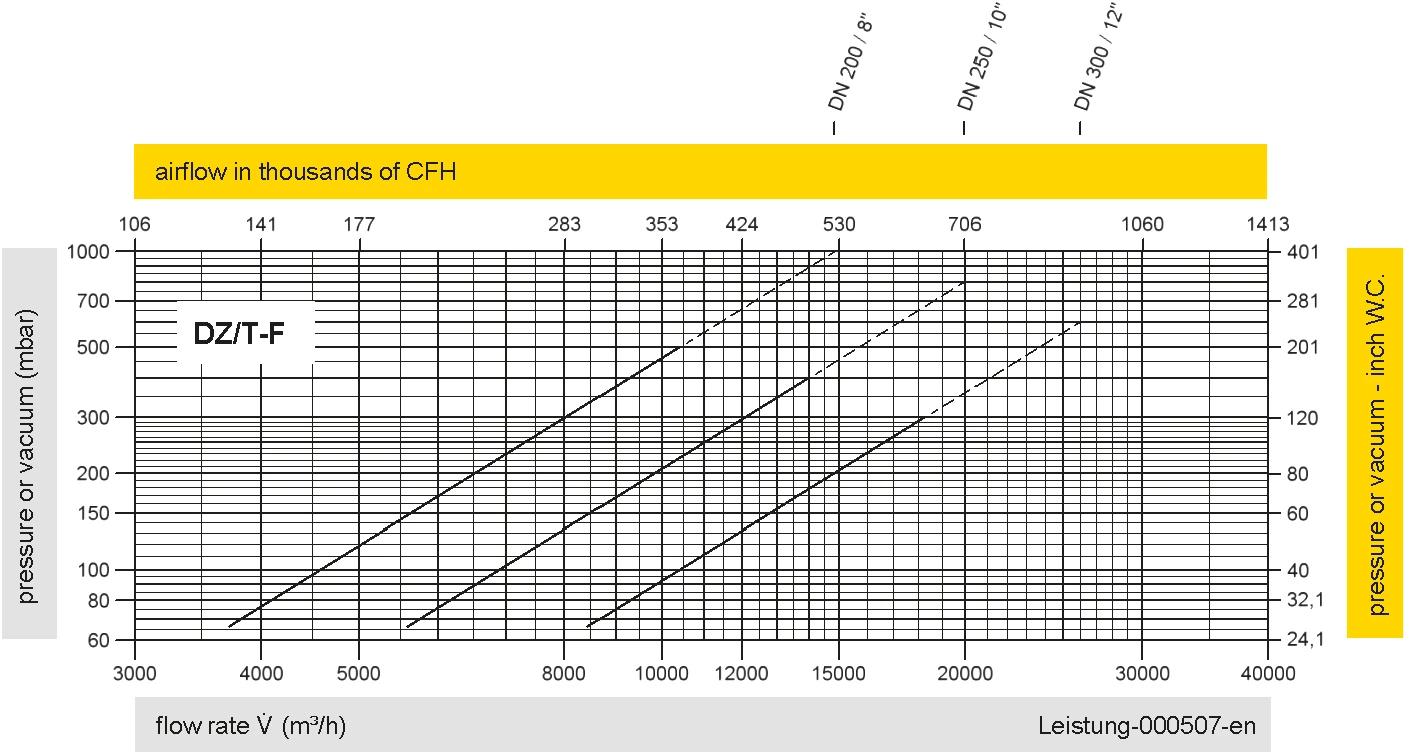

Flow Capacity Chart

The flow capacity charts have been determined with a calibrated and TÜV certified flow capacity test rig. Volume flow V in (m³/h) and CFH refer to the standard reference conditions of air ISO 6358 (20°C, 1bar). For conversion to other densities and temperatures refer to Sec. 1: “Technical Fundamentals”.

Detail X

Tank connection for pressure relief function

Tank connection for vacuum relief function
