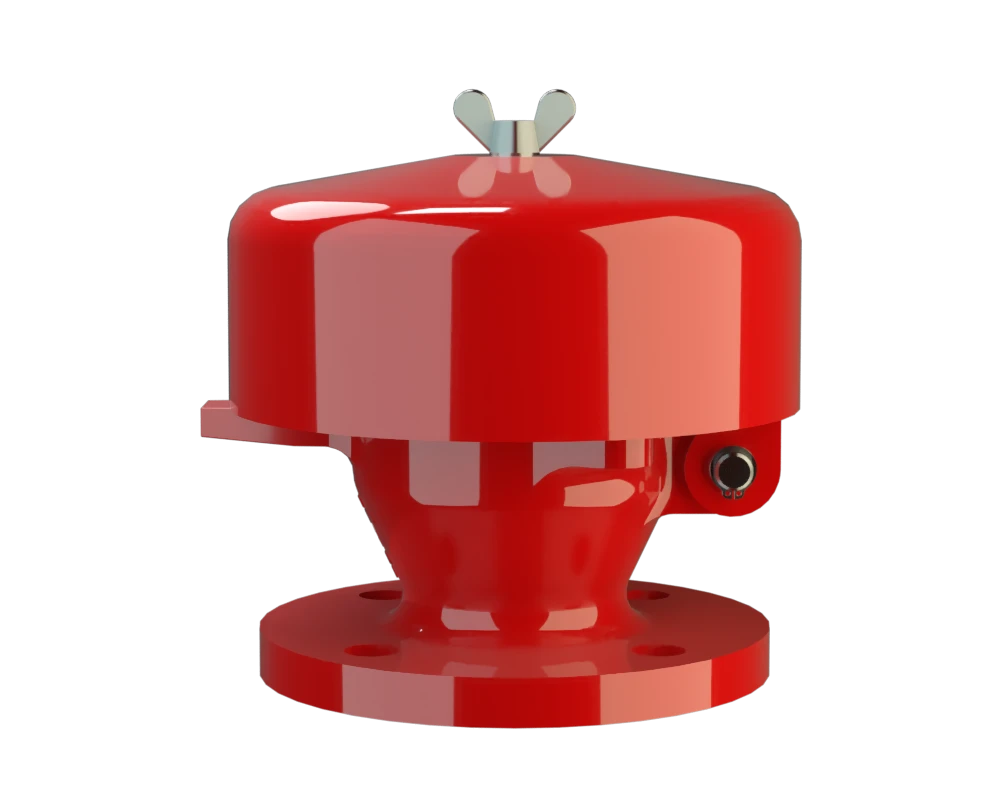

BE/HK-E-IIB3
Deflagration Flame Arrester, endurance burning proof, End-of-Line
Features
Endurance Burn Safety
for Alcohols and Hydrocarbons up to Explosion Group IIB
Suitable for Marine and Inland Tankers
Specially Developed for Sea Going Vessels but Also Useful for Inland Navigation Vessels and On Shore Systems
Comprehensive Weather Protection
Weather Hood With Protection Screen Protects the PROTEGO® Flame Arrester Unit Against Environmental Impact, Such as Nesting Animals and Weather Conditions
Visible Fire Indication by Tilting Weather Hood
in Case of Fire, the Weather Hood Opens, Allowing the Flame to Be Seen From a Far Distance
Chemically Resistant
Centrally Aligned Melting Element Is Resistant to Chemicals
Modular Design
Allows Replacement and Cleaning of Single FLAMEFILTER®
Spare Parts
Cost-Effective Spare Parts
Function and Description
Protection of Ethanol and Alcohols in Non-Pressurized Systems and Containers
The PROTEGO® BE-HK-E-IIB3 End-of-Line Deflagration Flame Arrester was specifically developed for vessels which are not pressurized and store Ethanol or other alcohols. The combustion of alcohol requires a modified Flame Arrester Element design to provide protection against endurance burning. In addition, the device provides protection against atmospheric deflagration. Main application area is on suction and vent lines, for inland navigation vessels and on shore systems with the goal to prevent flame transmission caused by endurance burning or atmospheric deflagration.
Main Component – PROTEGO® Flame Arrester Unit

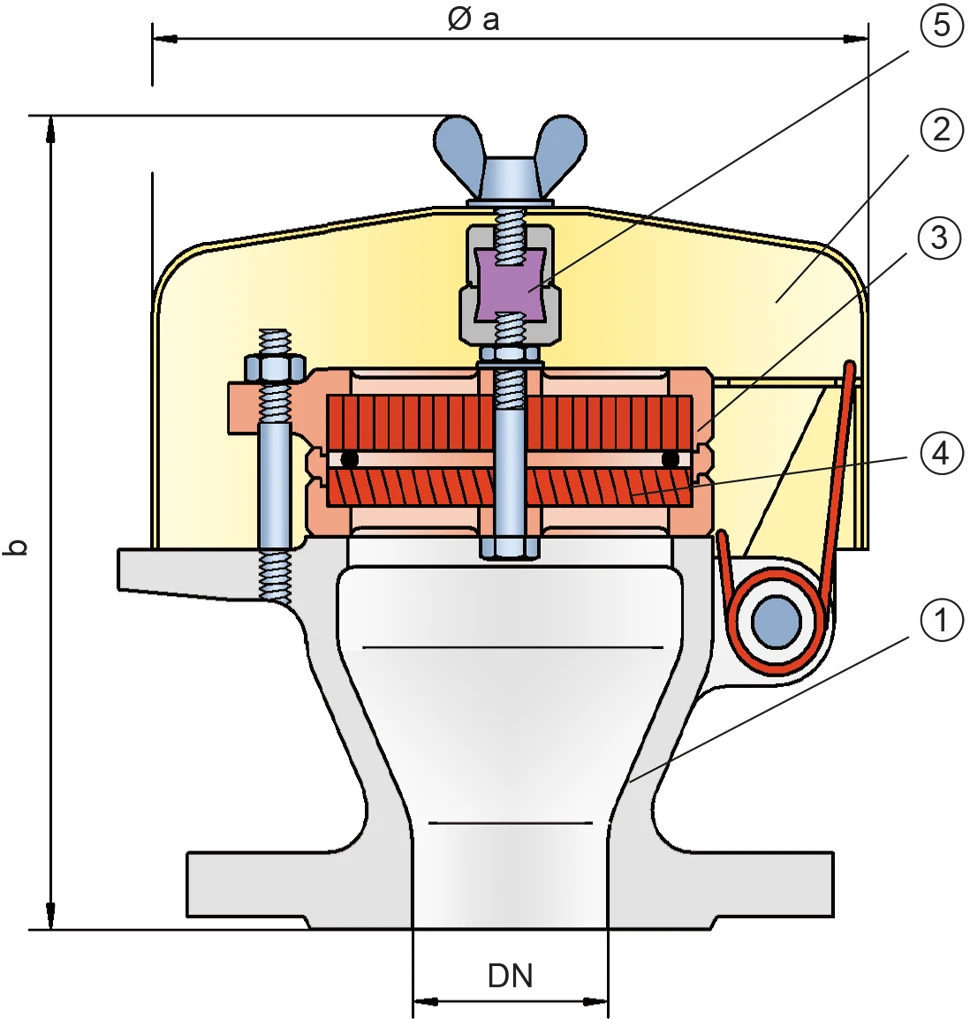

The PROTEGO® BE-HK-E-IIB3 consists of a housing (1), a weather hood (2) and the PROTEGO® Flame Arrester Unit (3). During normal operation the metal weather hood is in a closed position. If a stabilized flame burns on the Flame Arrester Element surface, the fusible link (5), located in a center position, will melt and let the spring loaded weather hood move into the open position. The PROTEGO® Flame Arrester Unit consists of two FLAMEFILTER® discs (4), which are installed in a FLAMEFILTER® casing.
For Explosion Group IIB3
The PROTEGO® BE-HK-E End-of-Line Deflagration Flame Arrester is available for hydrocarbons for explosion group IIB3 (MESG ≥ 0,65 mm) and alcohols.
The standard design can be used for operating temperatures up to +60°C / 140°F.
EU conformity according to the currently valid ATEX directive. Approvals according to other national/international regulations on request.
Approved according to IMO MSC/Circular 677 as well as IMO MSC.1/Circular 1324 and 1325.
Product Data
Dimensions
To select the nominal size (DN), please use the flow capacity charts on the following pages
| DN | 80 / 3" |
| a | 218 / 8.58 |
| b | 200 / 7.87 |
Dimensions in mm / inches
Dimensions for deflagration flame arrester with heating jacket upon request
Selection of explosion group
| MESG | Expl. Gr. (IEC / CEN) | Gas Group (NEC) |
| ≥ 0,65 mm | IIB3 | C |
Special approvals upon request
Material selection for housing
| Design | B | C | D |
| Housing | Steel | Stainless Steel | Hastelloy |
| Weather Hood | Steel | Stainless Steel | Stainless Steel / ECTFE |
| Flame arrester unit | A | A, C | C |
Special materials upon request
Material combinations of flame arrester unit
| Design | A | C |
| FLAMEFILTER® cage | Stainless Steel | Stainless Steel |
| FLAMEFILTER® | Stainless Steel | Hastelloy |
| Spacer | Stainless Steel | Hastelloy |
Special materials upon request
Flange connection type
| EN 1092-1; Form B1 |
| ASME B16.5 CL 150 R.F. |
other connections upon request
Flow Capacity Chart
The flow capacity charts have been determined with a calibrated and TÜV certified flow capacity test rig. Volume flow V in (m³/h) and CFH refer to the standard reference conditions of air ISO 6358 (20°C, 1bar). For conversion to other densities and temperatures refer to Sec. 1: “Technical Fundamentals”.
